P3 Ethanol Sensor Voltage Adaptor

P3 Ethanol Sensor Voltage Adaptor (ESVA)

• Allows ANY 0-5v linear input gauge to correctly read information directly from Continental/GM style ethanol (FlexFuel) sensor
• Has two separate outputs (1-ethanol content / 2-fuel temperature)
• Easy install between ethanol sensor and gauge

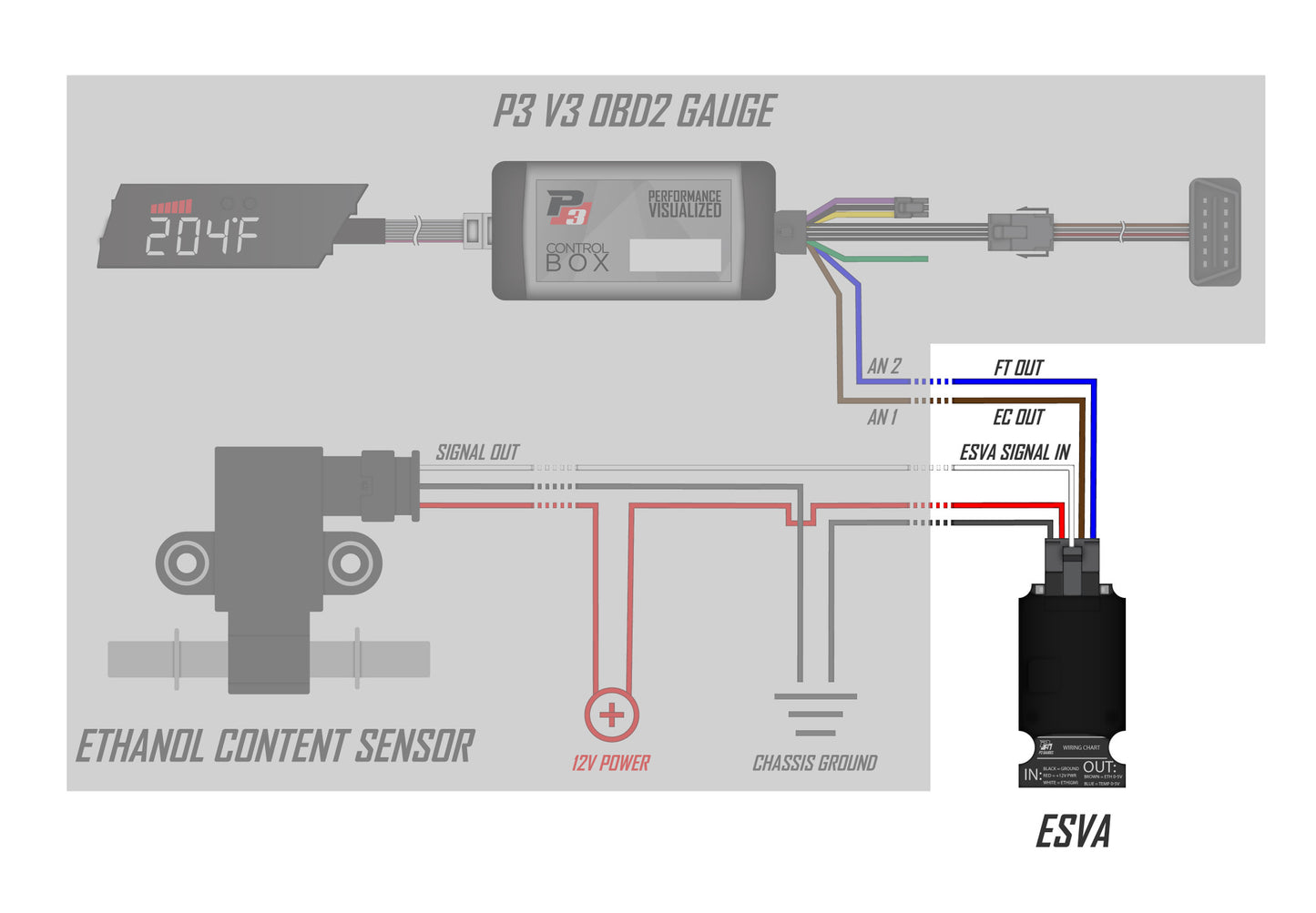

• Taps into signal output of ethanol sensor and wires directly to gauge, 12volt power and ground
• NOT A WATERPROOF DEVICE / Must be protected from the elements. We recommend locating ESVA with control box of P3 Gauge
• **Ethanol sensor NOT included**
